제품 상세 정보:
|
|
| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | MTSCO |
| 인증: | ISO 9001 & PED & AD2000 |
| 모델 번호: | MTSCOSSSP61 |
|
결제 및 배송 조건:
|
|
| 최소 주문 수량: | 양도할 수 있는 |
| 가격: | 2400-12000USD/TON |

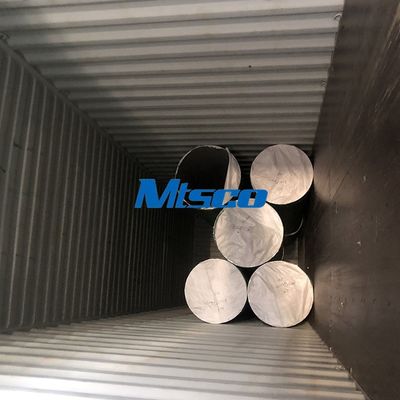

| 포장 세부 사항: | 합판 상자 / 번들 |
| 배달 시간: | 30 일 |
| 지불 조건: | Ｔ / Ｔ ; Ｌ / Ｃ |
| 공급 능력: | 500 톤/달 |
|
상세 정보 |
|||
| 재료: | 스테인리스 300의 시리즈 | 타입: | 용접하는 |
|---|---|---|---|
| NDT: | 와전류 또는 수압 시험 | 검사: | 100% |
| 서피스: | 산세 & 가열 냉각 | 절차: | 전기 용융 용접 Etc인 전기 저항 용접법 |
| 하이 라이트: | Sch80 Stainless Steel Welded Pipe,ASTM A358 Stainless Steel Welded Pipe,Annealed And Pickled ss welded tube |
||
제품 설명

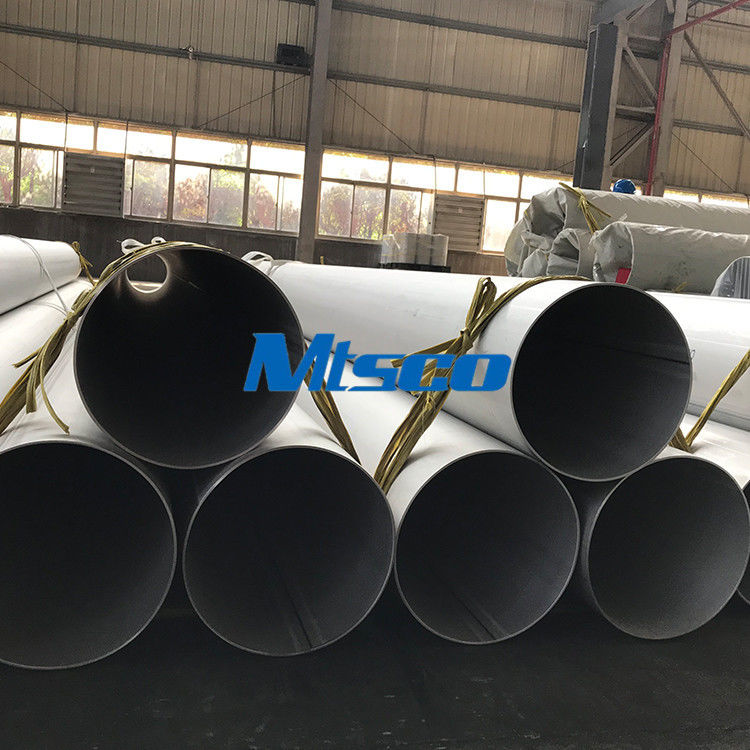

ASTM A358 / ASME SA358 12inch Sch80 Pickling & Annealing Welded Pipe
1. Material Grade: TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , etc
2. Outer Diameter: 10.3mm-1219mm
Wall Thickness : 1.24mm-59.54mm
3. Length: Normally fixed length 6m , can as per customer’s requirement
4. Standard: ASTM A312 ; ASTM A358 ; ASTM A789 ; ASTM A790 etc .
5. Process Method: ERW , EFW etc
| American Standard | TP304 , TP304L , TP310S , TP316 , TP316L , TP316Ti , TP321 , TP347 , 904L , S31803 Etc |
| European Standard | 1.4301 , 1.4306 , 1.4845 , 1.4401 , 1.4404 , 1.4571 , 1.4541 , 1.4550 , 1.4539 , 1.4462 Etc |
| German Standard | X5CrNi18-10 , X2CrNi19-11 , X12CrNi25-21 , X5CrNi17-12-2 , X5CrNi17-12-3 , X2CrNiMo18-14-3 , X6CrNiTi18-10 , X6CrNiTb18-10 Etc |
Test :
1 . X-ray , Size test , Length test
2 . Chemical Analysis ( Photoelectric Emission Spectroscopic ) etc
| Material | Chemical Composition % Max | ||||||||||
| C | Mn | P | S | Si | Cr | Ni | Mo | N B | Nb | Ti | |
| TP304 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ^ | ^ | ^. | ^ |
| TP304L | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-12.0 | ^ | ^ | ^ | ^ |
| TP316 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | ^ | ^ | ^ |
| TP316L | 0.035 D | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-15.0 | 2.00-3.00 | ^ | ^ | ^ |
| TP321 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | ^ | ^ | ^ | 5C -0.70 |
| TP347 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | 10C -1.10 | ^ | ||
MTSCO has been dedicated to producing welded pipe and tube since 2003 , owning complete producing technology and abundant managing experience . And we have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .
MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . In order to facilitate customers, we have welded pipes and tubes too. MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement . According to standard very strictly , pipes which produced by us always have correct OD and WT tolerance .
